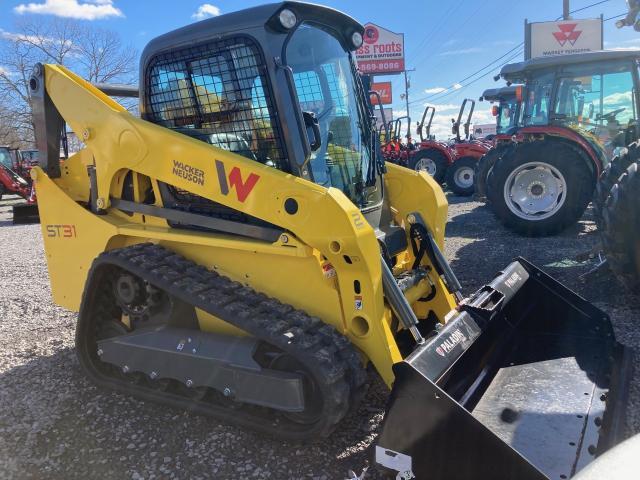

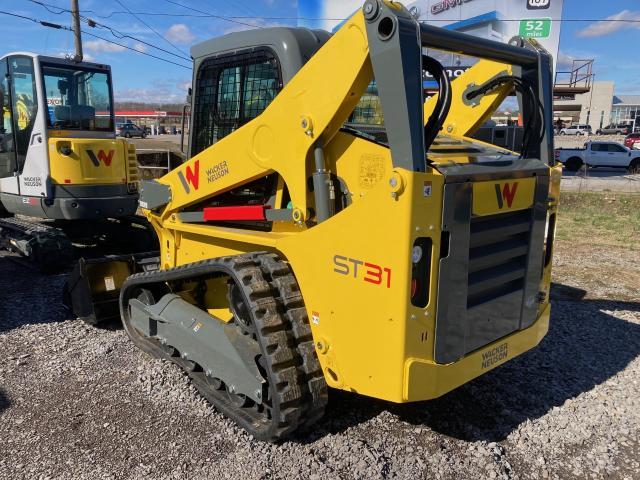

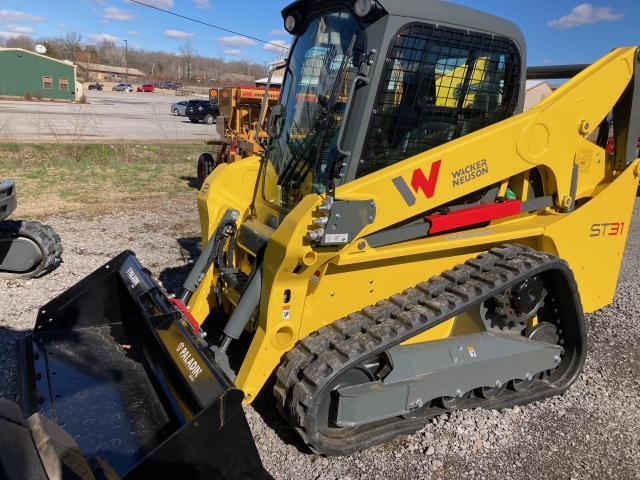

The ST31 matches the compact size of a medium frame with lift capacity of larger loaders. The vertical lift arm, 125 inch lift height and 74hp regeneration free engine, make the ST31 an accomplished material handler, perfect for use in a wide range of applications, from moving palletized material around a construction site to truck loading. The wide, double-steel reinforced tracks provide stability and reduced total cost of ownership.
Maintenance and Filter Free After-treatment
Maintenance, and regeneration free after treatment eliminates extreme heat and reduced performance during regeneration.
Equipped with a passive Diesel Oxidation Catalyst (DOC) and Exhaust Gas Recirculation requiring no maintenance, reducing Total Cost of Ownership (TCO).
4 year / 4000 hour Engine Warranty
Kohler KDI engines come with industry-leading 4 year, 4,000 hour warranty, so both first and second life owners can be assured that their engine will be operating smoothly for years to come.
Forward Tipping Cab
Whether the lift arm is fully raised or on the boom stops, a forward tipping cab provides ample access to hydraulic pumps and motors.
Mechanical Details:
Cylinder 4,0
Cylinder capacity 151.5 Inch3
Operating power 73.8 hp
Operating Engine speed 2,750 1/min
Manufacturer Kohler
Ground Pressure (standard track) 5.8 psi
Break Out Force Bucket 5,300.1 lbf
Break Out Force Lift Arm 5,000 lbf
Tractive Effort max. at 100% effective force 9,873.6 lbf
Bucket Roll Back 1.6 s
Bucket Roll Out 2.1 s
Lift Arm Raise 3.7 s
Lift arm lower 2.5 s
Travel speed stage 1 6.5 m/H
Travel speed stage 2 9.6 m/H
Overall Length without bucket 106.6 ”
Overall Length with Bucket 136.6 ”
Overall width without bucket 67.1 ”
Overall Width (Large Track) 70.3 ”
Overall height to top of ROPS 83 ”
Bucket Hinge Pin Height 125.5 ”
Bucket roll back at ground 30 °
Bucket roll back at maximum height 30 °
Angle of departure 30 °
Bucket dump height at maximum height 97.2 ”
Bucket dump angle at maximum height 42 °
Operating weight 8,095.4 lb
Track width 12.8 ”
Track width (optional) 15.7 ”
Ground clearance 9.1 ”
Length of Track on Ground 57.2 ”
Dump reach at maximum height 39.2 ”
