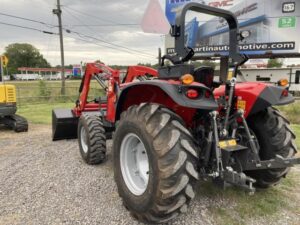

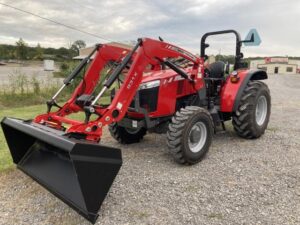

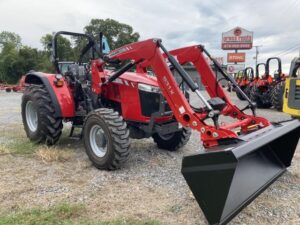

New Massey Ferguson 4707 Low Profile Open ROPS Tractor/Loader

New 2022 model 4707 Global Series Open ROPS Tractor with Loader
3cyl Agco Power Diesel Engine, 12 speed power shuttle, 4×4, air ride seat, instructional seat,
Massey Ferguson 931X loader with 84′ skid steer bucket
The 4700 Series is built for tough, gritty jobs. It’s also built to be easy to use and comfortable to operate. From the ground up, these tractors are engineered for smart, ergonomic, long-lasting operation. WE’VE NEVER BUILT A TRACTOR QUITE LIKE THIS.
You’ve got a ton of different jobs to tend to each day, and the last thing you need is a feeble tractor. The 4700 Series is built for tough, gritty jobs. It’s also built to be easy to use and comfortable to operate. From the ground up, these tractors are engineered for smart, ergonomic, long-lasting operation. Because even though the work is tough, your tractor should never be hard on you.
DURABILITY
• It’s simple. When all the key components of a tractor are built together, they work better together.
HEAVY-DUTY
• At a best-in-class base weight of 7,125 lbs., the 4700 Series is purpose-built for more pulling power and more lift capacity. Not to mention better maneuverability and more stability.
TRANSMISSION
• An easy-to-operate transmission provides multiple speed options and a more comfortable ride, whether you’re maneuvering through headlands or around tight spaces in the barn or yard.
3-CYLINDER 3.3L AGCO POWERTM ENGINE
• At the heart of it all is a rugged, reliable, fuel-efficient Tier 4 Final engine. These engines range from 70-100 horsepower and are specifically configured for North America.
STABILITY
• The last thing you need is a feeble tractor that shies away from the really tough jobs. The 4700 Series is heavier than other tractors in its class, uniquely designed to handle larger, heavier implements and more demanding applications. So it’ll be there when you need it.
4WD
• The 4WD front axle ensures that drive is evenly distributed for better traction and greater stability.
TIGHT TURNING RADIUS
• Sometimes you need to work in confined spaces. These tractors feature a tighter turning radius for easier maneuverability with better stability.
ADJUSTABLE WHEELS
• With a wide range of wheel-spacing settings, these tractors handle everything from specialty farming applications, like small-scale row crops and vegetables, to roadside mowing and land management applications.
HITCH
• An easy-to-operate transmission provides multiple speed options and a more comfortable ride, whether you’re maneuvering through headlands or around tight spaces in the barn or yard.
EASE OF USE
• The 4700 Series is easy- to-use and comfortable to operate. From the ground up, these tractors are engineered for smart, ergonomic, long-lasting operation. Because even though the work is tough, your tractor should never be hard on you.
EASY-REACH CONTROLS
• Essential controls are ergonomically positioned for easy operation and comfort.
ADJUSTABLE SEAT
• A spring tension-control knob adjusts the seat to comfortably accommodate operators of all sizes.
FENDER-MOUNTED 3-POINT CONTROL
• Hitch raise or lower controls on deluxe models are incorporated into the rear fender, making hook-up and disconnection of 3-point implements quick and easy.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Engine
Rated Engine HP (kW) @ Rated RPM
70hp (52.2)
Rated engine speed
2,200 RPM
PTO HP (kW) @ Rated RPM**
58hp
Engine
AGCO Power 3-cyl, 3.3 L, intercooled turbo-charged, high-pressure common rail direct fuel injection (HPCR)
Emissions control; EPA Tier 4-compliant
SCR Technology (post-combustion DEF), diesel oxidation catalyst (DOC)
Drivetrain
Transmission type
Deluxe: 12F X 12R, 2 range, power-shuttle, electro-hydraulic shuttle lever
Deluxe cab Wet clutch with foot pedal control
Rear axle
Flange type with internal planetary final drives
Brakes
Internal wet disc, independently controlled via foot pedals
Differential lock
Rear axle engaged via electro-hydraulic rocker switch
Front axle
4WD – cast steel fixed front axle with center drive line and combination bevel-gear/planetary final drives 4WD front axle differential HydraLock
Dimensions
Wheelbase in. (mm)
88.5 (2,250)
Minimum width in. (mm)
Std. Trelleborg® radial tires – rear 420/85R30, 60.3 (1,533)
Base weight without ballast lbs. 4WD ROPS: 7,125 (3,232)
DEF capacity gal. (L)
2.6 (10), plastic tank under platform, ground fill
Fuel capacity gal. (L)
27.7 (105), plastic tank under platform, ground fill Deluxe: Additional fuel tank guard
Hydraulics
Hydraulic system
Open center system, single pump
Hydraulic flow @ rear remotes gpm (lpm)
17.7 (65)
Rear remote valves
2 valves, Std.
Loader joystick
Opt., mounted on platform, valve on loader sub-frame with flat-face couplers
3-point lift capacity lbs. (kg.)
Category II, 4,850 (2,200)
Rear PTO
Independent, electro-hydraulic engagement via switch, 540 and 1,000 RPM Std., 540 and 540E RPM Opt.
Operators Area
Electrical system
Independent, electro-hydraulic engagement via switch, 540 and 1,000 RPM Std., 540 and 540E RPM
Cab features
Fully integrated controls; quiet; semi-flat floor, Opt. ergonomically-designed factory joystick; draft, throttle, remotes, PTO engagement, differential lock switch, 4WD switch on right console; digital and analog dash; largest cab in the industry; rubber floor mat; two cup holders, Rear wiper & washer; telescopic large side mirrors; internal mirror
Lighting (ROPS)
4 headlights, 2 rear signal/hazard lights, 1 rear work, 2 additional mid-mount adjustable work lights
Tilt/telescoping Steering**Advertised pricing excludes applicable taxes title and licensing, dealer set up, destination, reconditioning and are subject to change without notice. Pricing may exclude any added parts, accessories or installation unless otherwise noted. Sale prices include all applicable offers. Not all options listed available on pre-owned models. Contact dealer for details.
