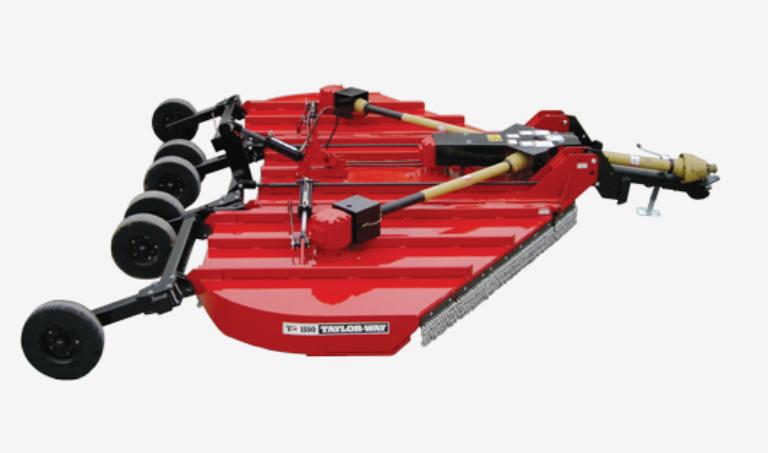

15ft Batwing Rotary Cutter by Taylor Way

Tough cutting applications are no match for Taylor Pittsburgh’s 1510/1550 15’ Flex-Wing Rotary Cutter. Try the industry’s best choice for maximum power and maneuverable cutting ability.

Four Gearbox Design with a Main Splitter Gearbox and Three Independent Drive Gearboxes
Rugged 7 Gauge Deck
Spring Cushioned Wheel Axles
Dual Center Section Wheels
Round Stump Jumpers
Constant Velocity Input PTO – Cat. 8 CV 540, Cat.6 CV 1000 Cat. 6 Wing Drivelines
Slip Clutches on all Drive Gearboxes
Replaceable Center Section and Wing Skid Shoes
Heavy-duty Castering Straddle Type Hitch Clevis
Self-leveling Tongue w/Dual Leveling Rods
Heavy-duty Tongue Jack with Storage Location on the Deck
Your Choice of Tires: 21″ Laminated Tires or Heavy Ply Used Airplane Tires

SERIES 1510 / 1550
Specifications
Gearbox Horsepower Ratings
540 RPM Splitter: 170 HP
540 RPM Drive: 3 x 150 HP
Blade Tip Speed 15,000 RPM
Blades ½” x 4″ High Lift
Hydraulic Cylinders
Wing: 3″ x 12″ Standard
Transport: 3″ x 8″ Standard
Drivelines
Input: Cat. 8 CV 540, Cat.6 CV 1000
Wing: Cat. 6 Standard
Slip Clutches: Standard
Deck Depth 10″
Side Skirt Construction ¼” Thickness
Cutting Height 1″ – 15″
Cutting Capacity Brush up to 2″
Blade Overlap 5 ½”
Wing Fold Angle 90º Up, 22º Down
Recommended Minimum Tractor HP 65 HP
Approximate Machine Weight 4815 lbs. with Chains
Standard Features
Parking Stand
Wing Lift Cylinders
Skid Shoes
CV Driveline Cat. 8, 540 RPM
CV Driveline Cat. 6, 1000 RPM
Dual Center Section Wheels
Front & Rear Chain Guards
Laminated
